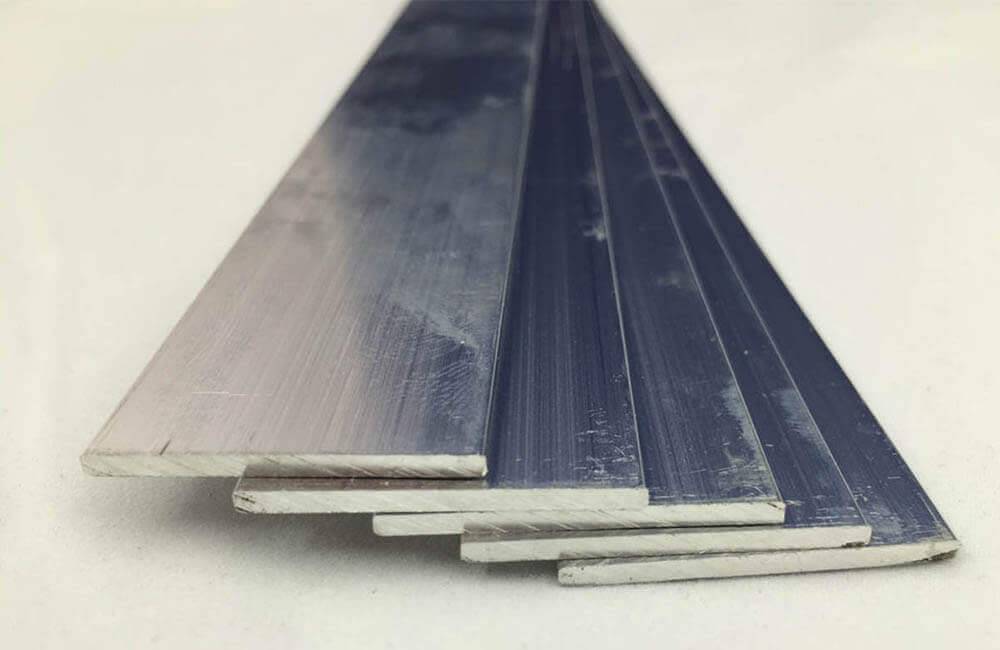

Aluminium Grade 2014 Flat Bars
- Home
- Aluminium Grade 2014 Flat Bars
Triumph Metallic Overseas proudly offers Aluminium Grade 2014 Flat Bars, a premium choice for various industrial applications. Known for its high strength and excellent machinability, this alloy is particularly well-suited for aerospace and automotive components. As a leading manufacturer, supplier, stockist, and exporter, Triumph Metallic Overseas ensures that our clients receive only the best products tailored to their specific needs.
Aluminium Grade 2014 is characterized by its superior mechanical properties, including high tensile strength and excellent fatigue resistance. This makes it ideal for applications requiring durability and reliability. The alloy also exhibits good corrosion resistance, particularly when anodized, ensuring longevity in demanding environments. Triumph Metallic Overseas guarantees that our flat bars maintain these properties through rigorous quality control and testing.
The versatility of Aluminium Grade 2014 Flat Bars makes them suitable for a wide range of applications. Commonly used in the aerospace industry for aircraft structures and components, they are also utilized in automotive parts, marine applications, and structural frameworks. As dedicated suppliers, we understand the unique requirements of each industry and provide tailored solutions to meet those needs effectively.
Aluminium Grade 2014 Flat Bars Specifications
| Property | Value |
|---|---|
| Material | Aluminium 2014 |
| Alloy Series | 2000 Series |
| Temper | T6 |
| Thickness | Varies (e.g., 3mm to 100mm) |
| Width | Varies (e.g., 20mm to 300mm) |
| Length | Standard lengths (e.g., 3m to 6m) |
| Tensile Strength | 480 MPa (minimum) |
| Yield Strength | 400 MPa (minimum) |
| Elongation | 5% (minimum) |
| Density | 2.78 g/cm³ |
| Thermal Conductivity | 120 W/m·K |
| Electrical Conductivity | 35% IACS |
| Corrosion Resistance | Moderate |
Aluminium Grade 2014 Flat Bars Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | 2014 |
| EN | AlCu4SiMg |
| ISO | Al-Cu4SiMg |
| AA | 2014-T6 |
| DIN | AlCu4MgSi |
| JIS | AC4C |
Aluminium Grade 2014 Flat Bars Chemical Composition (%)
| Element | Chemical Composition (%) |
|---|---|
| Aluminium (Al) | 90.7 - 94.7 |
| Copper (Cu) | 3.9 - 5.0 |
| Silicon (Si) | 0.5 max |
| Iron (Fe) | 0.5 max |
| Manganese (Mn) | 0.3 - 0.9 |
| Magnesium (Mg) | 0.4 max |
| Chromium (Cr) | 0.1 max |
| Zinc (Zn) | 0.25 max |
| Titanium (Ti) | 0.15 max |
| Other Elements | 0.05 max each, 0.15 max total |
