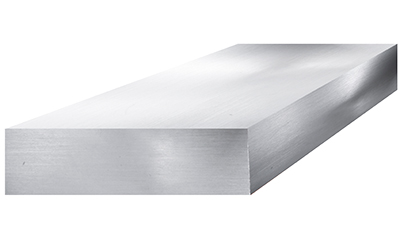

Aluminium Grade 6061 Flat Bars
- Home
- Aluminium Grade 6061 Flat Bars
At Triumph Metallic Overseas, we take pride in being one of the leading manufacturers and suppliers of Aluminium Grade 6061 flat bars. Renowned for its excellent mechanical properties, this alloy is widely used in various industries, including aerospace, automotive, and construction. Our flat bars are produced to the highest standards, ensuring durability and reliability for your applications.
Aluminium Grade 6061 is known for its versatility and strength. It features a balanced composition of magnesium and silicon, which enhances its corrosion resistance and weldability. This makes our flat bars an ideal choice for projects that require both structural integrity and lightweight materials. As prominent stockists, we offer a wide range of sizes and thicknesses to meet the specific needs of our clients.
At Triumph Metallic Overseas, we understand the importance of quality in industrial materials. Our Aluminium Grade 6061 flat bars undergo stringent quality control processes to ensure they meet industry standards. As exporters, we are committed to providing our clients with products that not only meet their specifications but also adhere to international quality benchmarks. This dedication to quality has earned us a solid reputation in the market.
Aluminium Grade 6061 Flat Bars Specifications
| Property | Value |
|---|---|
| Alloy | 6061 |
| Temper | T6 |
| Thickness Range | 0.125" - 12" |
| Width Range | 1" - 60" |
| Length Range | Up to 24' |
| Tensile Strength | Minimum 275 MPa (40,000 psi) |
| Yield Strength | Minimum 207 MPa (30,000 psi) |
| Elongation | Minimum 10% in 50 mm |
| Modulus of Elasticity | 68.9 GPa (10,000,000 psi) |
| Density | 2.70 g/cm³ |
| Corrosion Resistance | Good |
| Weldability | Good |
| Machinability | Good |
| Applications | Structural components, automotive parts, marine applications, etc. |
Aluminium Grade 6061 Flat Bars Equivalent Grades
| Aluminium Grade 6061 | Equivalent Grades | Standard |
|---|---|---|
| 6061 | 6060 | ASTM B221 |
| 6061 | 6005 | ASTM B221 |
| 6061 | 6063 | ASTM B221 |
| 6061 | AA6061 | AA Standards |
| 6061 | BS L111 | British Standard |
| 6061 | DIN 3.3211 | German Standard |
| 6061 | JIS A6061 | Japanese Industrial Standard |
Aluminium Grade 6061 Flat Bars Chemical Composition (%)
| Element | Percentage (%) |
|---|---|
| Aluminium (Al) | 95.8 - 98.6 |
| Silicon (Si) | 0.4 - 0.8 |
| Iron (Fe) | 0.7 |
| Copper (Cu) | 0.15 - 0.4 |
| Manganese (Mn) | 0.15 |
| Magnesium (Mg) | 0.8 - 1.2 |
| Chromium (Cr) | 0.04 - 0.35 |
| Zinc (Zn) | 0.25 |
| Titanium (Ti) | 0.15 |
| Others | 0.05 each |
