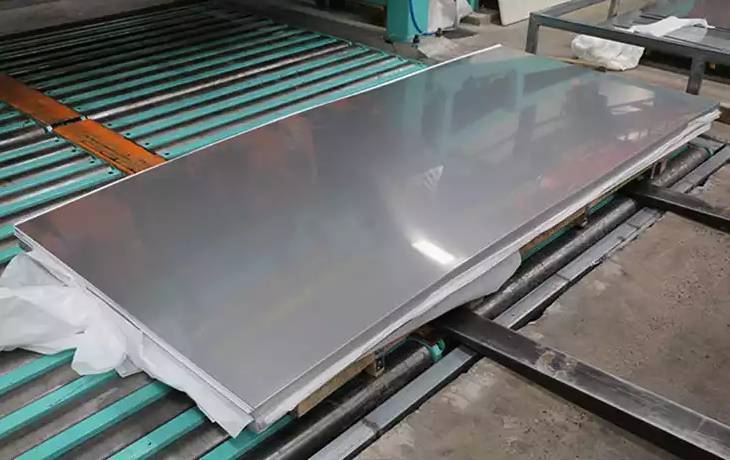

Stainless Steel 410 Plate
- Home
- Stainless Steel 410 Plate
At Triumph Metallic Overseas, we pride ourselves on being leading manufacturers and suppliers of high-quality stainless steel products, including our durable Stainless Steel 410 Plate. Known for its excellent mechanical properties and corrosion resistance, the 410 grade is widely used in various industrial applications. Our commitment to quality and customer satisfaction ensures that our clients receive products that meet the highest standards.
Stainless Steel 410 is a martensitic grade, which means it can be hardened through heat treatment. This property allows it to maintain its strength and durability in demanding environments. At Triumph Metallic Overseas, our Stainless Steel 410 Plates are meticulously produced to deliver superior performance in applications such as valves, pumps, and various components in the aerospace and automotive sectors. Our state-of-the-art manufacturing processes guarantee precision and reliability in every plate we supply.
As trusted stockists and exporters of Stainless Steel 410 Plates, we maintain a comprehensive inventory to meet the diverse needs of our clients. We understand that timely delivery is crucial in today’s fast-paced industrial landscape. Therefore, we ensure that our stock is always ready for immediate dispatch, allowing our customers to keep their projects on schedule. Whether you require standard sizes or custom dimensions, Triumph Metallic Overseas is equipped to fulfill your specific requirements.
Stainless Steel 410 Plate Specifications
| Property | Specification |
|---|---|
| Material Type | Stainless Steel 410 |
| Standard | AISI 410, ASTM A240 |
| Composition | Chromium: 11.5% - 13.5%, Carbon: 0.08% max, Manganese: 1.0% max, Silicon: 1.0% max, Phosphorus: 0.04% max, Sulfur: 0.03% max |
| Density | 7.75 g/cm³ |
| Ultimate Tensile Strength | 450 - 600 MPa |
| Yield Strength | 250 MPa min |
| Elongation | 25% min in 50 mm |
| Hardness | Rockwell C 40 - 45 |
| Weldability | Good, but preheating is recommended |
| Applications | Cutlery, valves, pumps, and some industrial equipment |
| Formability | Fair |
| Heat Treatment | Hardening: 1020 - 1065°C, Tempering: 400 - 650°C |
Stainless Steel 410 Plate Equivalent Grades
| Standard | Grade | Remarks |
|---|---|---|
| AISI | 410 | Martensitic stainless steel |
| ASTM | A240 | Standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications |
| ASTM | A276 | Standard specification for stainless steel bars and shapes |
| UNS | S41000 | Unified Numbering System designation for stainless steel 410 |
| EN | 1.4006 | European standard designation for stainless steel 410 |
| DIN | X20Cr13 | German standard designation for martensitic stainless steel |
Stainless Steel 410 Plate Chemical Composition (%)
| Element | Symbol | Composition (%) |
|---|---|---|
| Iron | Fe | Balanced |
| Chromium | Cr | 11.5 - 13.5 |
| Carbon | C | 0.15 max |
| Manganese | Mn | 1.0 max |
| Silicon | Si | 1.0 max |
| Phosphorus | P | 0.04 max |
| Sulfur | S | 0.03 max |
| Nitrogen | N | 0.10 max |
| Copper | Cu | 0.75 max |
